Powerdot 17

1 socket type F, 2 USB-C charger 30W, 1 cable grommet, 3PC, black
9358051709
Brand: FORMING FUNCTION

Description

With the Powerdot you have access to electricity, data and media in a stylish and simple way everywhere. When you need it, where you need it. Powerdot ties the room together with stylish charging in expected – and unexpected – places. The possibilities are endless. You decide where and how you want to be connected.

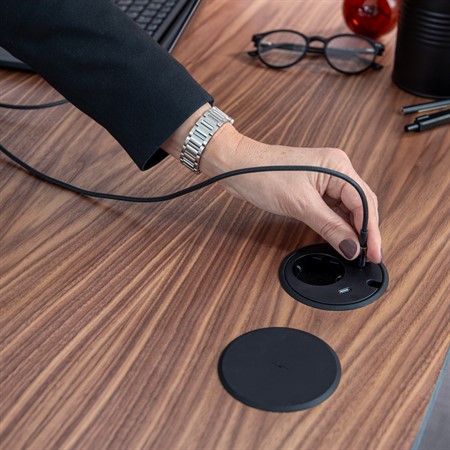

The Powerdot 17 provides two USB-C charging ports (2 x 30W) and features a convenient side hole for routing cables such as USB-C connections, network Cables or display cables. It is easily mounted through the table top in a 79 mm hole and is easily and securely screwed into place with a threaded ring under the top, without the need for an electrician.

Specifications

•   Rated voltage: 250V
•   Rated current: 16A
•   Max load: 3500W
•   Colour: Matte black/matte white
•   1 x power, 2 x USB-C chargers (2 x 30W), 1 x Ø8 mm cable hole
•   Electrical connection: GST18i3 1,25 m (3x1,5 mm²)
•   Drilling: 79 mm
•   Total height: 75 mm
•   Max tabletop thickness: 30 mm

More ...Close

Product packing
Pack type: Carton box
Dimensions: 18 x 14 x 11 cm
Volume: 0,002772 m³
Gross Weight: 0,22 kg
Net Weight: 0,18 kg
Quantity: 1 pcs
EAN: 7350030251211
Custom Code: 8544 42 90 90 Country of Origin: CN
Master pack / SKU
Pack type: Carton box
Dimensions: 58 x 37 x 29 cm
Volume: 0,062234 m³
Weight: 4,7 kg
Quantity: 20 pcs
One round on EUR Pallet
Dimensions: 120 x 80 x 29 cm
Weight: 41,6 kg
Quantity: 80 pcs
Full EUR Pallet (incl. 15 cm pallet)
Dimensions: 120 x 80 x 129cm
Weight: 166,4 kg
Quantity: 320 pcs
CAD Injected Card
The 3D model files will soon be available. Need them now? Please e-mail us at cad@formingfunction.se and we will make sure to help you!

Description

With the Powerdot you have access to electricity, data and media in a stylish and simple way everywhere. When you need it, where you need it. Powerdot ties the room together with stylish charging in expected – and unexpected – places. The possibilities are endless. You decide where and how you want to be connected.

The Powerdot 17 provides two USB-C charging ports (2 x 30W) and features a convenient side hole for routing cables such as USB-C connections, network Cables or display cables. It is easily mounted through the table top in a 79 mm hole and is easily and securely screwed into place with a threaded ring under the top, without the need for an electrician.

Specifications

•   Rated voltage: 250V
•   Rated current: 16A
•   Max load: 3500W
•   Colour: Matte black/matte white
•   1 x power, 2 x USB-C chargers (2 x 30W), 1 x Ø8 mm cable hole
•   Electrical connection: GST18i3 1,25 m (3x1,5 mm²)
•   Drilling: 79 mm
•   Total height: 75 mm
•   Max tabletop thickness: 30 mm

More ...Close

Accessories

Item NumberDescriptionD1021D1022D18114
Axessline Connection Cord - CEE 7/7 to 3PC, 2.0 m, black9202050109Axessline Connection Cord - CEE 7/7 to 3PC, 2.0 m, blackAxessline Connection Cord - CEE 7/7 till 3PC, 2.0 m, svartAxessline Connection Cord - CEE 7/7 to 3PC, 2.0 m, black
Axessline Connection Cord - CEE 7/7 to 3PC, 3.0 m, black9202050209Axessline Connection Cord - CEE 7/7 to 3PC, 3.0 m, blackAxessline Connection Cord - CEE 7/7 till 3PC, 3.0 m, svartAxessline Connection Cord - CEE 7/7 to 3PC, 3.0 m, black
Axessline Connection Cord - CEE 7/7 to 3PC, 5.0 m, black9202050309Axessline Connection Cord - CEE 7/7 to 3PC, 5.0 m, blackAxessline Connection Cord - CEE 7/7 till 3PC, 5.0 m, svartAxessline Connection Cord - CEE 7/7 to 3PC, 5.0 m, black
Axessline Extension Cord - 2 3PC, 2.0 m, black9203050109Axessline Extension Cord - 2 3PC, 2.0 m, blackAxessline Extension Cord - 2 3PC, förlängningskabel, 2.0 m, svartAxessline Extension Cord - 2 3PC, 2.0 m, black
Axessline Extension Cord - 2 3PC, 3.0 m, black9203050209Axessline Extension Cord - 2 3PC, 3.0 m, blackAxessline Extension Cord - 2 3PC, förlängningskabel, 3.0 m, svartAxessline Extension Cord - 2 3PC, 3.0 m, black
Axessline Extension Cord - 2 3PC, 5.0 m, black9203050309Axessline Extension Cord - 2 3PC, 5.0 m, blackAxessline Extension Cord - 2 3PC, förlängningskabel, 5.0 m, svartAxessline Extension Cord - 2 3PC, 5.0 m, black
Axessline Daisy Chain Connection Block - 3PC T-junction, 1 to 2, black9882050309Axessline Daisy Chain Connection Block - 3PC T-junction, 1 to 2, blackAxessline Daisy Chain Connection Block - 3PC T-Stycke, 1 till 2, svartAxessline Daisy Chain Connection Block - 3PC T-junction, 1 to 2, black
Axessline Daisy Chain Connection Block - 3PC T-junction, 1 to 3, black9882050409Axessline Daisy Chain Connection Block - 3PC T-junction, 1 to 3, blackAxessline Daisy Chain Connection Block - 3PC T-Stycke, 1 till 3, svartAxessline Daisy Chain Connection Block - 3PC T-junction, 1 to 3, black
